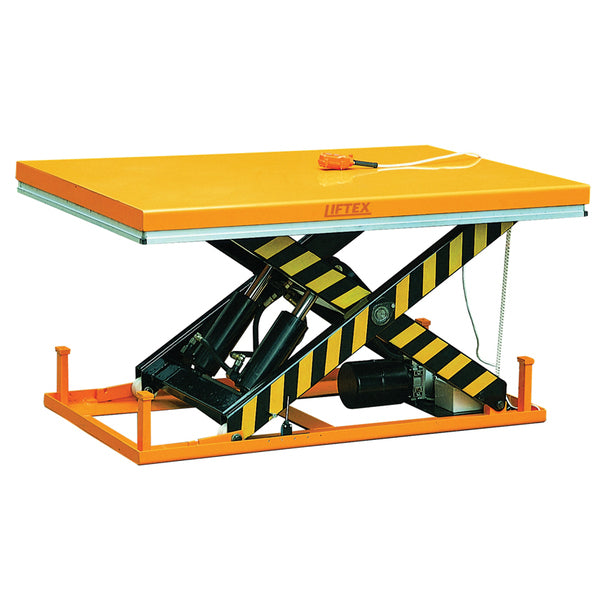

Single Scissor Electric Lift Table Capacity 2000Kg

Warranty:1Year

Description:-

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.

Heavy duty design and construction
High quality European power packs
Suitable for on floor applications or in floor pit applications
Self lubricating bushings on pivot points
Removable lifting eyes to facilitate installation and maintenance
240V power supply
Upper platform lifted with aluminium safety bar preventing descent on contact with obstructions
Low volt (24v) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst
Safety clearance between scissors to prevent trapping during operation.
Push button pendant control with up, down and emergency stop

Specifications:-

Code

Capacity

(KG)

Table Size (WxL)

Base Frame Size(mm)

Min Height

(mm)

Max Height(

mm)

Raise Time

(S)

Unit Weight

(KG)

Power Supply (V)

TR7264

2000

850x1300mm

785x1255

230

1000

20-25

235kg

240

TR7266

2000

1000x2000mm

785x1630

250

1300

25-30

315kg

240
