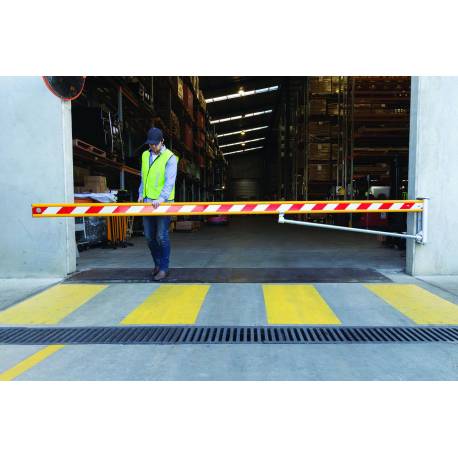

Industrial Manual Swing Gate

Warranty:-1Year

Description:-

Manual Vehicle Swing Gate system is perfect for areas where there is not enough space for rolling or sliding a gate. They can be used to replace the old steel gates and are very light and easy for operating manually. Possess high resistance to rust and looks very good at the entrance. It is suitable for both commercial as well as industrial uses.

It can be easily mounted to a bollard or any kind of solid surface for preventing the pedestrians for entering the unsafe or restricted area. It requires manual operation by a person for opening and closing the gate It features a 3-5meter aluminum beam with a yellow powder coating and a red or white reflective panel. Moreover, you will also be provided with steel bollards along with receiver posts and wall receivers if you want.

Description	Manual pedestrian or vehicle gate
Material	Galvanised Steel Assembly
Finish	Powder Coated Yellow with reflective Panel
Rail	Aluminium Extrusion 145x40x5000mm
Operation	Push
Swing	Up to 180°
Stop	Optional Receiver Post or Wall Receiver
Max Opening	5m
Min Opening	2m
Adjustment	Rail Length Can be Cut Down on Site
Height	1m
Mounting	Post or Wall
Weight	35kg Gate Assembly with 5m rail

Features:-

Suitable for use in warehouses, factories and car parks.

The gate can be mounted onto a bollard or any solid surface as a safety barrier to prevent vehicle and pedestrian access to unsafe or unauthorised areas.

These Industrial Swing Gates require one person to operate to manually open and close the gate.

Optional Steel bollards, Receiver posts and wall receivers are available upon request.

Specifications:-

Model	Description
MSG5000	MANUAL 5M SWING GATE
C90SM	SURFACE MOUNT ROUND BOLLARD - 90 X 5 X 1000mm
C90BG	BELOW GROUND ROUND BOLLARD - 90 X 5 X 1380mm
C140SM	SURFACE MOUNT ROUND BOLLARD - 140 X 5 X 1200mm
C140BG	BELOW GROUND ROUND BOLLARD - 140 X 5 X 1700mm
MSGRK	ADDITIONAL GATE RECEIVER KIT
