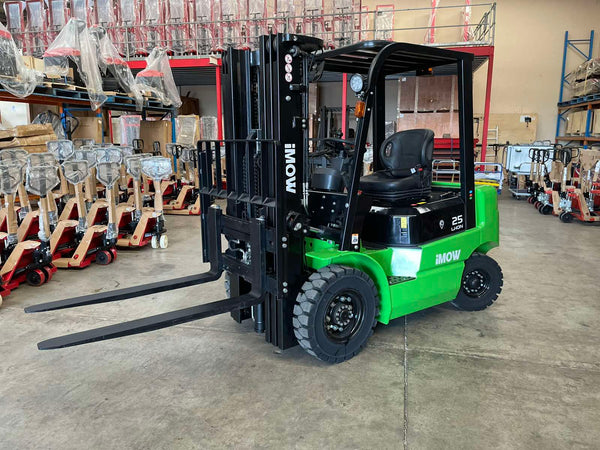

2.5T Li-Ion Electric Drive forklift

Description:-

Lifting Height : 4800mm
Battery Type : Lithium-ion
Battery Capacity : 80V220AH
Capacity : 2500KG
Control Options : Lever
Tyre Type : Solid

Specifications:-

Unit Dimensions (mm) – 2580 (L) x 1160 (W) x 2070 (H)
Weight: 4580kgs
Min. Turning Radius 2470mm
Front Tyre Size 28 x 9 -15
Rear Tyre Size 6.50 x 10
1.3 Drive Electric
1.4 Operator type Seated
1.5 Load capacity Q kg 2500
1.6 Load center distance c mm 500
1.8 Load distance centre of drive axle to fork x mm 495
1.9 Wheelbase y mm 1595
2.1 Service weight kg 3770
2.2 Axle loading, laden front/rear kg 5490/780
2.3 Axle loading, unladen front/rear kg 1450/2320
3.1 Tyre type – Solid
3.2 Tyre size, front 7.00-12-12PR
3.3 Tyre size, rear 6.00-9-10PR
3.5 Wheels, number front/rear (x=drive wheels) mm 2x/2
4.1 Tilt of mast/fork carriage forward/backward α/β ° 6/10
4.2 Retracted mast height h1 mm 2060
4.3 Free lift h2 mm 140
4.4 Lift height h3 mm 4800
4.5 Height, mast extended h4 mm 4050
4.7 Height of overhead guard (cabin) h6 mm 2160
4.8 Seat height/standing height h7 mm 1095
4.12 Tow coupling height h10 mm 435
4.19 Overall length l1 mm 3573
4.20 Length to face of forks l2 mm 2503
4.21 Overall width b1/b2 mm 1154
4.22 Fork dimensions s/e/l mm 40×125×1070
Fork carriage class/type A, B 2A
4.24 Fork carriage width b3 mm 1090
4.31 Ground clearance, laden, below mast m1 mm 100
4.32 Ground clearance, center of wheelbase m2 mm 150
4.34.1 Aisle width for pallets 1000×1200 crossways Ast mm 3985
4.34.2 Aisle width for pallets 800×1200 crossways Ast mm 4195
4.35 Turning radius Wa mm 2290
5.1 Travel speed, laden/unladen km/h 11/12
5.2 Lifting speed, laden/unladen m/s 0.28/0.37
5.3 Lowering speed, laden/unladen m/s 0.45/0.5
5.8 Max. gradeability, laden/unladen % 15/15
5.10 Service brake Hydraulic
5.11 Parking brake Mechanical
6.1 Drive motor rating S2 60 min kW 10
6.2 Lift motor rating at S3 15% kW 12
6.4 Battery voltage/nominal capacity V/Ah 80/205
8.1 Type of drive control AC
10.5 Steering design Hydraulic
10.7 Sound pressure level at the driver’s ear dB(A) 74
