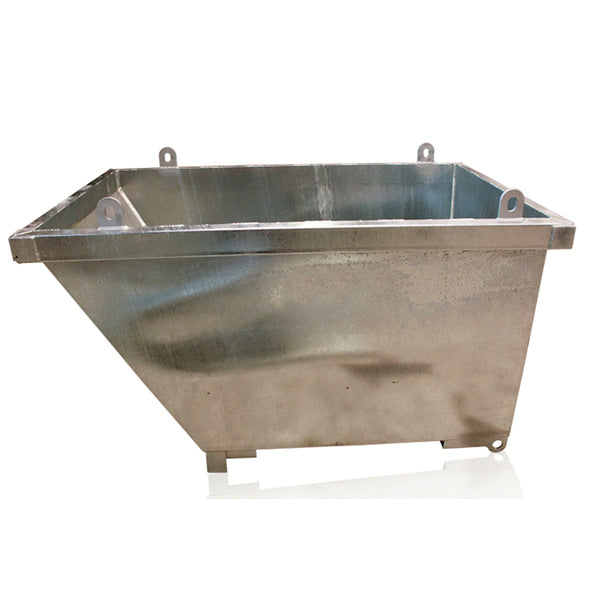

Self Dumping 1500kg Capacity Waste Bins

Warranty:1Year

Description:-

The Self Dumping Bin has been designed to provide an economical solution to waste storage and disposal of industrial waste. Forklift tines are positioned fully under the bin utilising the forklifts maximum lift capacity.

FEATURES:-
• Suitable for use with forklift or overhead crane
• Supplied standard with 4 crane lugs and upending lugs
• Self dumping mechanism allows the operator to safely activate tipping cycle from driver’s seat
• Made from 3mm plate and reinforced edging for demanding applications
• Fitted standard with a removable drain plug
• Fork pockets and safety chain for quick connection to a forklift
• Optional wheel kit and drain ball valve available for supply on request
• Galvanised finish

Specifications:-

Model	Working Load Limit (kg)	Capacity (cu.m)	Bin Length (mm)	Bin Width (mm)	Bin Height (mm)	Pocket Size (mm)	Pocket Centres (mm)	Unit Weight (kg)
QWFH5X74C	1500	0.35	1510	740	630	185 x 70	310	130
QWFH5X11C	1500	0.59	1510	1150	630	185 x 70	695	155
QWFH9X74C	1500	0.68	1715	740	980	185 x 70	310	165
QWFH9X11C	1500	1.1	1715	1150	980	185 x 70	695	200
QWFH9X20C	1500	2.1	1715	1986	980	185 x 70	695	260
